Anti-Kinking Spirals 'KSS' and 'KSS-SD'

The main bending stress area for hose assemblies is directly behind the coupling. To reinforce this area we developed the Anti-Kinking Spiral 'KSS': suitable for all ELAFLEX hoses, recommended for dynamically strong stressed universal hoses with thermoplastic linings

GasGuard LPG nozzle GG1EH

used for industrial refueling / attended refueling. With hybrid nose piece − low lever force. Release volume on valve closure: 1,7 cm³.

ELAPHARM and SD Pyropal steam hose

Pharmaceutical production

Elapharm EPH 25 with foodstuff fitting DIN 11551, free of dead spaces

Fuel grade identification for ZVA to standard

Attach with EK 145 Product Badge

Fuel Grade Identification to EN 16942 standard, direct print on product badges for ZVA Nozzles

CHD 32

Lilac Band chemical hose without helix, DN 32

VB 100 SSE

TW dust plug of stainless steel, surface in contact with the medium additionally coated with Teflon® PFA. This type is used if stainless steel does not have a sufficient chemical resistance (i.e. for hydrochloric acid and iron-III-chloride) and polypropylene is not possible because of insufficient stability. Available in all standard sizes.

MK-A 80 SS

MK 80 SS with active safeguard lever

Elapharm EPH 25 OHM-G

ELAPHARM OHM G electrically conductive 'Ω / T', light grey cover. Corresponds to DIN 26055-3 / EN 16820, Type A. FDA conform. Homogeneous elastomer hose construction with smooth, black Teflon® PTFE liner.

ELAFLEX Hamburg

Hose assemblies pressure testing (hydrostatic test)

Terminal Railtanker

LTW 100, MK 100, VK 100, SBC 100-4, FFBV 100

ZVA Slimline 2 with SG 1" Al Sight Glass

Offshore FSRU (Floating Regasification Unit), connector for gasoil sludge / seawater

DDC-V 150 F

ELAFLEX HIBY Tanktechnik, Production Plettenberg / Germany

Manufacturing nozzle seat

Double Closing Safety Swivel Break

SSB 25 DC

ELAFLEX HIBY Tanktechnik, Production Plettenberg / Germany

Machining spouts

IBC unloading

Coupling of Chemopal chemical hose assembly with AMKC 50 SS (Camlock female with Spannloc attachment) to AMKI male coupling. Use of IBC-adapter RS 60 x 2 SS.

ZVA 25 with Z-Swivel

Boat Refuelling, Hose Reel

Construction of ELAFLEX composite hoses type FWS

Sectioned view of a composite hose, denomination of the components (English)

Camlock cam locking couplings:

Attachment AVB dust plug with chain to Spannloc clamps (service free of charge)

ROTEX 80.16

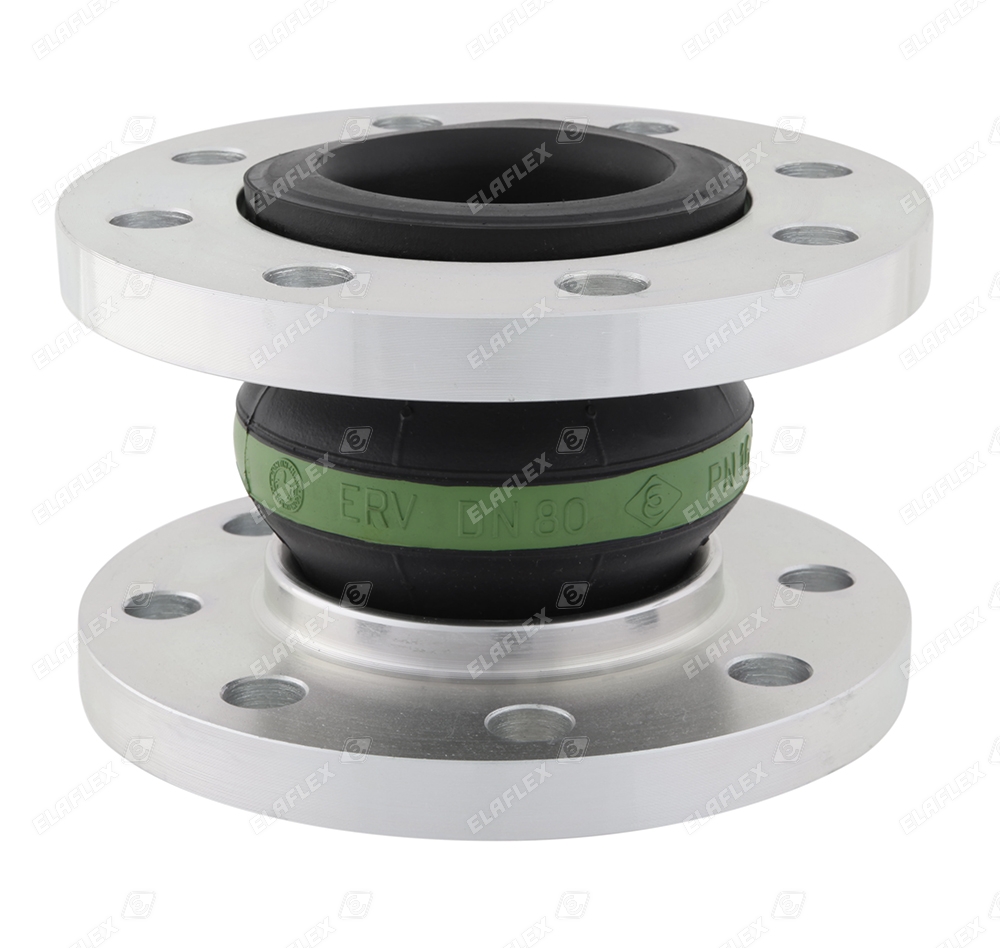

Rubber Expansion Joint suitable for permanent use with hot heating water, cooling water and hot air. Approved according to DIN up to 100° C by 10 bar and up to 110° C by 6 bar. Temperature range (depending on medium) - 40° C up to + 130° C, temporarily up to + 150° C. Electrically dissipative

Stainless steel hose tails - new shape

Stainless steel hose tails - optimized shape for enhanced operational safety, suitable for temperatures up to 150° C. Details see Information 5.15.

Road tanker Sweden

large reel with HD hose assembly, DDC-V (Dry Disconnect Coupling, tank unit) and DDC-K (caps)

DDC-K 2 1/2" PE

Dust cap for DDC-V Dry Disconnect Couplings;
• Meets the ADR requirements
• Enhanced safety and protects the environment
• Easy, user friendly operation

ZVA Slimline 2 nozzles, ESB 16 Safety Breaks, Slimline hose assemblies

Paraguay

IBC unloading

Coupling of chemical hose assembly with AMKC 50 SS (Camlock female with Spannloc attachment) to AMKI male coupling. Use of IBC-reducer RS 60 x 2 SS, directly attached to IBC.

LNG Refuelling

N-LNG Nozzle, Soft-Stop-Position

VHD Neon aircraft refuelling hoses

Aircraft dispenser

Connection DDC-M 100 with HD hose assembly to tanker

Ship bunkering from the road tanker
