ZVA Slimline 2 nozzles special version, Slimline dispensing hoses blue / red

Thailand

DN 1" Ms

Double nipple brass

ELAFLEX HIBY Tanktechnik, Production Plettenberg / Germany

Assembling ZVA

ZVA Slimline 2, black - bottom view

Ship bunkering with LNG

Coupling of DCC male and female part DN 50; left hand side CBC 50 Cryogenic Breakaway Coupling

ELAFLEX Hamburg

Stock special flanges, pick by voice, scanning

ZVA Slimline 2

Automatic nozzle DN 19, for flowrate max. 80 l / min. Green Product Sleeve and Scuffguard, Slimline dispensing hose assembly

Dispenser picture to distinguish the three different kinds of Safety Breaks

Hose Break, Pump Break, Nozzle Break

Safety Swivel Break

SSB 32

Hose assembly for L.P. Gas

LPG 50, DGC-M 50 with special handle, adapter DGC 50 x 3 1/4" ACME

Hose assemblies for LPG

with flange connection, ACME connection, NPT thread

Fixed Flange and hose tail of stailess steel

SFC 63.16 SS

Railtanker

MannTek DDC-V 80 F Dry Disconnect Couplings (tank unit with flange), Pressure Caps PN 25 with pressure relief

ERV-G ... TW

Aircraft refueller

Sideway storage of hose assemblies, tank truck for petrol station delivery

LG 3" hose assembly for gravity discharge, LG 2" hose assembly for vapour balance

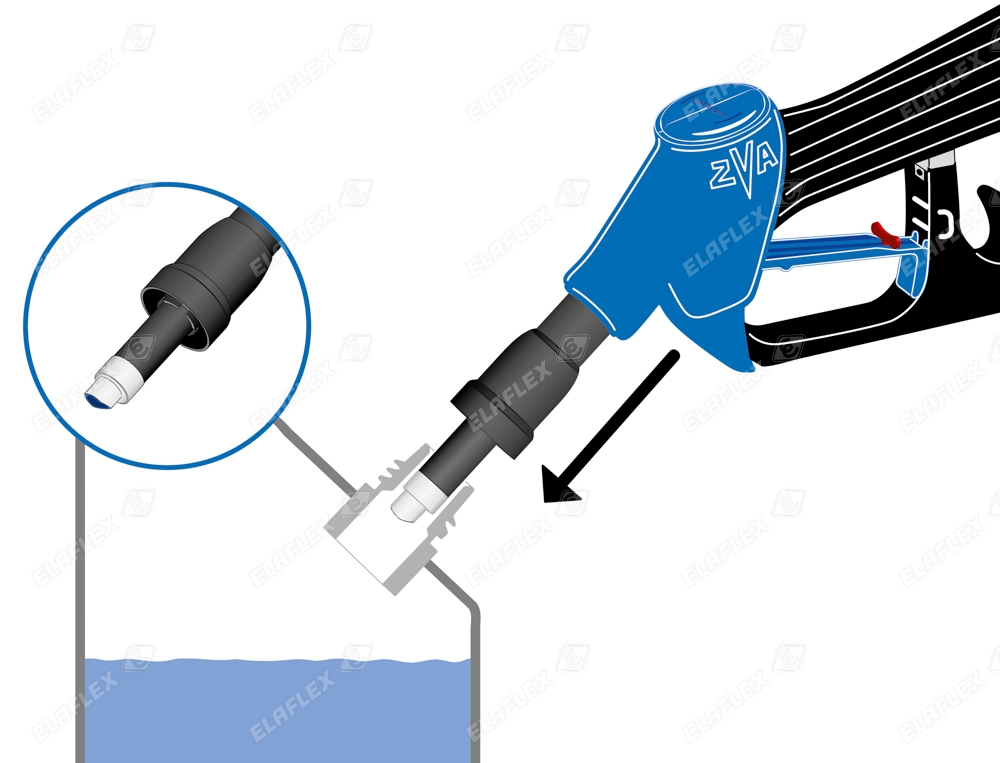

Urea solution filling of a car:

ZVA LV for AdBlue^®, Slimline 16 for AdBlue^® (blue cover)

Fuel Grade Identification to EN 16942 for ZVA Nozzles

Type EK FGI - attach with Product Badge EK 145

Fluorflex FXD universal hose assemblies

with inner corrugation for maximal flexibility. Picture 1

ElaSil® Silicone hose assemblies DN 13-102

For for high media purity requirements, easy to clean. Suitable for Pharma, foodstuff and cosmetics industry. Homogeneous hose construction of platinum cured, translucent and phtalate free Silicone (FDA / USP), resistant to kinking and highly flexible. Large temperature range -60° C to +200° C. Available as complete hose assembly with crimped fittings, DN 13 to 102. Here: DN 25 with Camlock Cam Locking Coupling and Triclamp connection

Production plastic parts

Injection Molding

Oasis ball valves for CNG

ZVF 50 UL 91 / green

Manual aviation fuelling nozzle for overwing service. Flowrate up to 400 ltr. / min. (85 IGM – higher flowrates are possible). Size DN 50. Working pressure PN 10 (140 psi). Temperature range - 40° C up to + 55° C.

LNG Refuelling

N-LNG Nozzle, Soft-Stop-Position

GasGuard GG11R

The GasGuard GG11 Back-Check Valve (GG11R: with additional release screw) should be standard equipment for any LPGas road tanker operator. It is used in conjunction with LPGas bulk refueling nozzles to contain leaks at storage tank fill points. If the fill point proves to be leaking when removing the nozzle it can be left on the tank until corrective action is taken. The driver can move to the next fill point without delay.

Rubber Expansion Joint ERV-GS 80.16

YELLOW STEEL expansion joints for petroleum based products, DIN EN fuels up to 50 % aromatic content, cooling water with oily anticorrosion additives, lubrication and hydraulic oil, seawater. Temperature (depending on medium) range - 20° C up to + 90° C, temporarily up to + 100° C. Fire resistant (to ISO 15540) up to 30 min. and 800° C. Electrically dissipative.

L.P. Gas rail tanker

loading and unloading with DGC Dry Gas Couplings; Use of adapters with ACME thread

Offshore FSRU (Floating Regasification Unit), Unloading Gasoil Sludge

TW hose assemblies, reels

Ship bunkering

'Yellow Band' collapsible high

Urea solution for trucks: ELAFIX 40 magnet adapter in filler inlet of AdBlue® tank

Safety against misfuelling (mixup with Diesel)

HD 63 C NEON, TW 75 E NEON

'NEON' type with reflecting bands or NEON marking in spiral form
