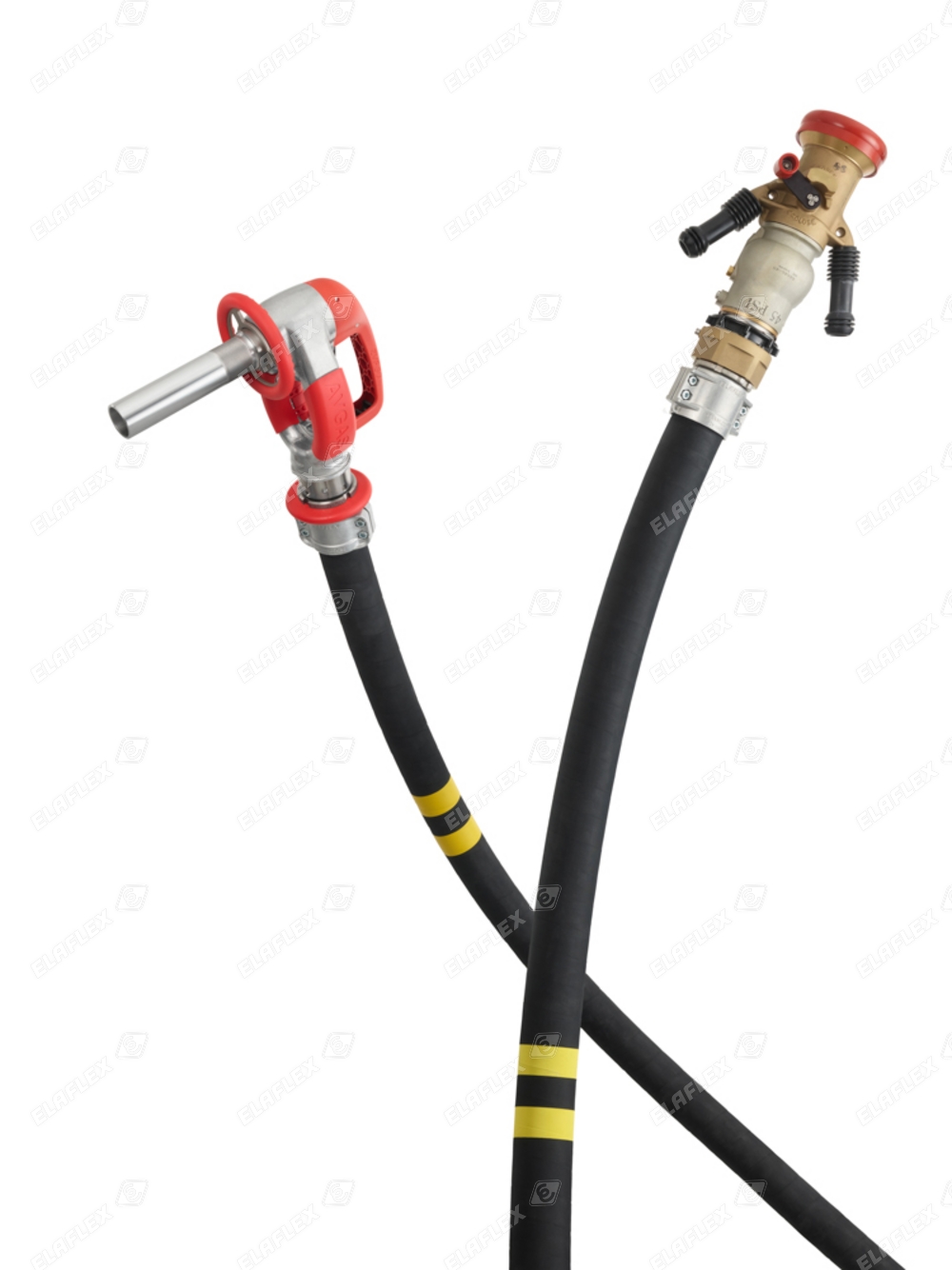

ZVF 50 JET overwing refuelling
with HD-C hose assembly
LNG Refuelling
N-LNG Nozzle, pull back handles to uncouple
Slimline 21 blue
Quality petrol pump hose for gasoline and diesel fuels. Also suitable for fuels with ethanol content up to E 85 and Biodiesel up to B 30 (BIO Type up to B 100). Meets weights and measures regulations, see overleaf. Cold flexible down to - 30° C / - 22° F (LT-type down to - 40° C / - 40° F). Corresponds to EN 1360 and EN 13483.
Section view of a DRIP STOP spout
for ZVA Slimline 2 nozzles - stops dripping Diesel
Elaflon Plus FEP hose assembly, FFC-SS fixed hose flange
Elapharm
Hose Assemblies for use in the Pharmaceutical and Biotech Industries
ELAFLEX Hamburg
Certificate pressure test
ZVA Slimline 2 LA with LeverAssist hold-open aid
Elaflon PTFE 38 hose assembly with crimped fitting
ZVA Slimline 2
Automatic nozzle DN 19, for flowrate max. 80 l / min. Green Product Sleeve and Scuffguard, Slimline dispensing hose assembly
Hose Reel spring rewind red, SL 19 black, ZVA Slimline 2 green
Nozzles and hose assemblies for the forecourt
ZVA Slimline 2, ZVA Slimline 2 GR, Slimline hose assemblies
KWZ 3" Al
Rail tanker adapter with male thread connection, aluminium
Lightweight Gravity Discharge Road Tanker Hose LG 4"
with TW coupling (VK 100)
PAL hoses for the chemical industry
Large hot stamping machine, production of aluminium parts
Guards for ZVA nozzles
suitable for all dispensers, world wide
FHD 50 special type HIFR
(helicopter in flight refuelling)
Aircraft refuelling
Carter Underwing Nozzle, HD63C Neon, ZVF 50 JET, SC 50 Al, HD 50 C, Hose Bead BD 50
ELAFLEX Hamburg
Narrow aisle stock fittings
Cargo loading of a tanker with petroleum based products; FHD hose assembly with new longitudinal stripe to avoid torsion
Picture courtesy of Macoil International, Gibraltar
Swivels DG 25 SS, DG 38 SS, DG 50 SS with hose assembly
Swivels serve to avoid hose torsion (increase of life span) and help for easier handling
Marine bunkering and cargo hoses
ship to ship cargo transfer
MB 50 SS
Dust cap for VK 50, stainless steel
Flange seal FD 220-162 of ELAPAC
Road tanker for heating oil delivery, DDC Dry Disconnect coupling with ADR conform cap as trailer connection
Rubber Expansion Joint ROTEX 80.16
ROTEX expansion joints suitable for permanent use with hot heating water, cooling water and hot air. Approved according to DIN up to 100° C by 10 bar and up to 110° C by 6 bar. Temperature range (depending on medium) - 40° C up to + 130° C, temporarily up to + 150° C. Electrically dissipative.
Vehicle refuelling Korea with LPG (L.P. Gas, Autogas, Propane)
ZVG 2 K nozzle, LPG 16 hose assembly
Construction site / on site refuelling:
ZVA 500 manual bulk nozzle, HD hose assembly, road tanker
Adapters / couplers for vehicles fighting dangerous goods incidents:
Adapter Hebelarmkupplungen AVK 50 SS/Vi x VK 50 SS/Vi, AMK 50 SS/Vi x VK 50 SS/Vi, AVK 75 SS/Vi x VK 50 SS/Vi
