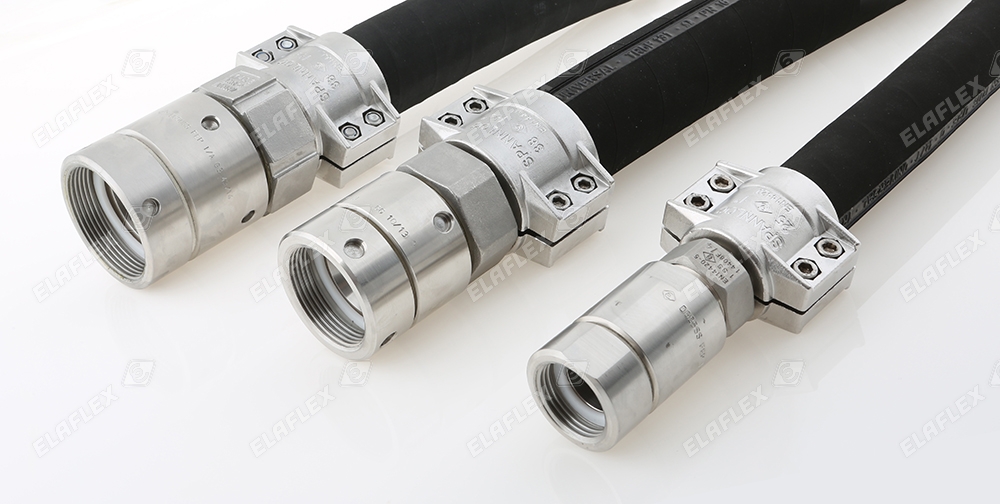

TW Couplings with Isolation for electronic Cross-Over Prevention Systems
see Information 4.12
Oasis SV104 Sandwich Valve with Air Torque Actuator, for CNG
CNG Safety Break
SB-CNG FLVL-S
Oasis Bus & Truck Fill Valves at CNG station
Anti-Kinking Spirals 'KSS' and 'KSS-SD'
The main bending stress area for hose assemblies is directly behind the coupling. To reinforce this area we developed the Anti-Kinking Spiral 'KSS': suitable for all ELAFLEX hoses, recommended for dynamically strong stressed universal hoses with thermoplastic linings
ZVA 25 with Z-Swivel
Boat Refuelling
Tank storage: manifold with DDC Dry Disconnect Couplings, TW hose assemblies
ZVA 32 for aircraft refuelling
black plastic cover (scuffguard), Sight Glass, dust cap and ground cable assembly
ZVA Slimline 2
with Sight Glass
Slimline 16 blue
Quality petrol pump hose for gasoline and diesel fuels. Also suitable for fuels with ethanol content up to E 85 and Biodiesel up to B 30 (BIO Type up to B 100). Meets weights and measures regulations, see overleaf. Cold flexible down to - 30° C / - 22° F (LT-type down to - 40° C / - 40° F). Corresponds to EN 1360.
ElaSil® Silicone hose assemblies DN 13-102
For Pharma, foodstuff and cosmetics industry.
ELS 25 with Camlock Cam Locking Coupling, foodstuff thread and Triclamp.
ZVA Slimline 2 / ZVA Slimline 2 GR
Petrol station nozzles with (top) and without vapour recovery (below)
TW 100, DDC-M 100, airport depot
Dry Disconnect Coupling for Loading/Unloading
Aircraft Refuelling Skid
HD-C hose assembly, ZVA 32 nozzle, SG1Al sight glass, hose reel made by ELAFLEX Italy
ZVA Slimline 2 GR, CSB 21, SL 21 Coax
petrol station Dubai - Vapour Recovery
HD-C aircraft refuelling hose
VHD 63 C NEON
KSS-SD of stainless steel
for saturated steam hoses. These hose assemblies are subject to high wear. The main stress area for hose assemblies is also at the joint end is protected.
ZVF 50 JET overwing refuelling
LeverAssist hold-open aid for comfortable refuelling
H2 Hydrogen group picture
ERV-H2+, H2 hydrogen hose assembly, Oasis Ball Valves, Check Valves
ERV Rubber Expansion Joints with different flange types / flange materials
Production MannTek, Sweden
FGN 2 St
Flange with male thread, steel zinc plated/chromated
VK 80 - 2" IG Ms
TW male coupling brass, with reduced female BSP connection, one piece adapter (special type)
ELAFLEX Hamburg
Delivery trucks, loading ramps
Aircraft refuelling hoses
VHD-C NEON, SFC TW, HD-C NEON, MC SS Al, PHD-F, VC SS Al
M 21-1" NR cr
Female ferrule hose coupling EN 14424, factory assembled, non-reattacheable. Slimline 21 hose, blue.
HD 10 C sensing hose
Use as sensing hose for aircraft dispensers (hydrant dispensers)
NB-ZVF 50 SR, ER 583 PTL, Aljac Closed Circuit Sampler (CCS)
Nozzle boot f. ZVF 50 with additional spout retainer
SG 1" 1x0 Al
Sight Glass with propeller, to EN 13617-1, DN 25, for installation between petrol station nozzle and hose assembly, or mounting on the dispenser. For the visual control of bubble-free dispensing and fuel colour (e. g. for premium fuels). Suitable for all standardised gasoline and diesel fuels according EN 589 + EN 590, including ethanol or biodiesel content, also Avgas and Jet-A1.
Functioning principle of MannTek DDC Dry Disconnect Couplings
closed - open
