Section 4: Rubber Expansion Joints

Table of content: ERV Rubber Expansion Joints, Page 401

Update: 04.2017

Order Number Breakdown, Page 402 + 403

Update: 04.2017

Checklist for Expansion Joints, Page 404

Update: 04.2017

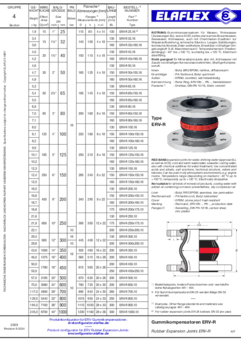

RED BAND Expansion Joints, Page 407‑408 (prev. catalogue page 4‑21)

  • Type ERV-R

for water, drinking water (approval DVGW W 270 as well as ACS), cold and warm waste water, sea water, cooling water, also with chemical additives for water treatment, low concentrated acids and alkalis, salt solutions, technical alcohols, esters and ketones.

Temperature range -40°C up to +100°C.

Update: 09.2017

ROTEX Expansion Joints, Page 411‑412 (prev. catalogue page 4‑31)

  • Type ROTEX

for permanent stress through hot heating water, cooling water and hot air. Approved according to DIN up to 100°C by 10 bar and up to 110°C by 6 bar.

Temperature range -40°C u pt o +130°C.

Update: 12.2015

CR Expansion Joints, Page 415‑416 (prev. catalogue page 415)

  • Type ERV-CR

for cold and warm water, swimming pool water, sea water, waste water (weakly sour or alkaline) also oilc ontaining, cooling water with protective oils against corrosion, lubricating oil, grease and air, compressed air.

Temperature -25°C up to +90°C.

Update: 09.2017

BR Expansion Joints, Page 417‑418

  • Type ERV-BR

special type for abrasive media such as sludges, slurries, solid / liquid mixtures and emulsions, dustlike or powdery products (e. g. carbon-blacks).

Temperature (depending on medium) - 50° C up to + 70° C, temporarily up to + 90° C.

Update: 09.2017

RED SPOT Expansion Joints, Page 419‑420 (prev. catalogue page 0413)

  • Type ERP

for cold and warm water, pool water, sea water, drinking water.

Temperature range -40°C up to+90°C.

Update: 09.2017

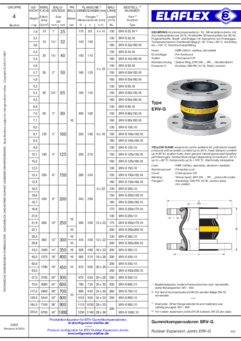

YELLOW BAND Expansion Joints, Page 423‑424 (prev. catalogue page 4‑05)

  • Type ERV-G

for petroleum based products, fuel ethanol blend and DIN EN fuels, also town gas and natural gas, except for LP-gas.

Temperature range -20°C up to +90°C.

Update: 09.2017

YELLOW STEEL Expansion Joints, Page 427‑428 (prev. catalogue page 4‑11)

  • Type ERV-GS

for petroleum based products, DIN EN fuels, cooling water with oily anticorrosion additives, lubrication and hydraulic oil, seawater.

Temperature range -20°C up to +90°C. Fire resistant up to 30min. and 800°C.

Update: 09.2017

YELLOW STEEL HNBR Expansion Joints, Page 431‑432

  • Type ERV-GS HNBR

for petroleum based products, DIN EN fuels, cooling water with oily anticorrosion additives, lubrication and hydraulic oil, seawater. Very good aging and resistance.

Temperature range -35°C up to +100°C.

Update: 09.2017

YELLOW BAND LT Expansion Joints, Page 435‑436

  • Type ERV-G LT

for low temperature applications for petroleum based products, diesel, heating oil, aviation fuel JETA 1, kerosene, petroleum and gasoline.

Temperature range -40°C up to +90°C.

Update: 09.2017

ORANGE BAND Expansion Joints, Page 439‑440 (prev. catalogue page 407)

  • Type ERV-OR

for Liquid Petroleum Gas (LPG) according to EN 589. For tank trucks and refuelling stations.

Temperature range -20°C up to +90°C.

Update: 09.2017

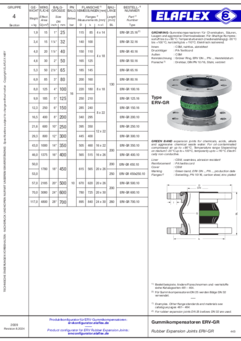

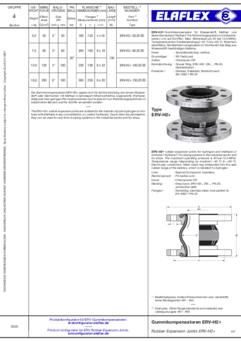

GREEN BAND Expansion Joints, Page 443‑444 (prev. catalogue page 407)

  • Type ERV-GR

for chemicals, acids, alkalis and aggressive chemical waste water. For oil-contaminated compressed air up to +90°C.

Temperature range -20°C up to +100°C.

Update: 09.2017

WHITE BAND Expansion Joints, Page 451‑452 (prev. catalogue page 407)

  • Type ERV-W

for food stuffs, also oil and fat containing food. Not approved for drinking water.

Temperature range -20°C up to +90°C.

Update: 09.2017

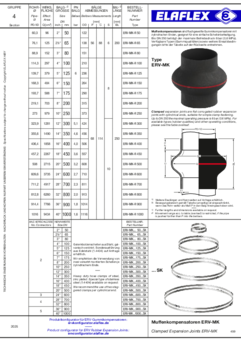

FLANGE choice, Page 461,462,463,464

For the choice of flanges a great variety of combinations concerning geometrie, materials and coatings is available. Also two different flange types on one compensator are possible.

Update: 03.2017

ERV Tie Rods and Angular Limiters, Page 464

Tied Flanges – Type ZS

Update: 03.2017

ERV Inner Sleeves, PTFE Lining, Support Spiral, Support Ring, Page 467, 468 (prev. catalogue page 403 and 417)

Update: 08.2016

Flame Protection Cover for ERV Rubber Expansion Joints, Page 471 (prev. catalogue page 0421)

Update: 04.2018

Overview of Certificates, Page 472

Update: 04.2018

Hints for Pipework Designer, Page 475‑476 (prev. catalogue page 404 and 412)

Update: 06.2019

Installation and Operation Hints for ERV Rubber Expansion Joints, Page 479‑480 (prev. catalogue page 0410)

Update: 12.2015

Information concerning the Pressure Equipment Directive (PED) 2014/68/EU, Page 483‑484

Update: 04.2019

 Catalogue Pages by Category

ERV Rubber Expansion Joints

  • Table of content: ERV Rubber Expansion Joints
  • RED BAND Expansion Joints
  • ROTEX Expansion Joints
  • CR Expansion Joints
  • BR Expansion Joints
  • RED SPOT Expansion Joints
  • YELLOW BAND Expansion Joints
  • YELLOW STEEL Expansion Joints
  • YELLOW STEEL HNBR Expansion Joints
  • YELLOW BAND LT Expansion Joints
  • ORANGE BAND Expansion Joints
  • GREEN BAND Expansion Joints
  • WHITE BAND Expansion Joints

Information ERV Rubber Expansion Joints

  • Order Number Breakdown
  • Checklist for Expansion Joints
  • Overview of Certificates
  • Hints for Pipework Designer
  • Installation and Operation Hints for ERV Rubber Expansion Joints
  • Information concerning the Pressure Equipment Directive (PED)

Accessories for ERV Rubber Expansion Joints

  • FLANGE choice
  • ERV Tie Rods and Angular Limiters
  • ERV Inner Sleeves, PTFE Lining, Support Spiral, Support Ring
  • Flame Protection Cover for ERV Rubber Expansion Joints

ERV for Flexible Connections.

Rubber Expansion Joints (compensators) are used as flexible connectors within pipe systems. Based on the German expression „Elastische Rohrverbinder“ the type brand ERV® is being used.

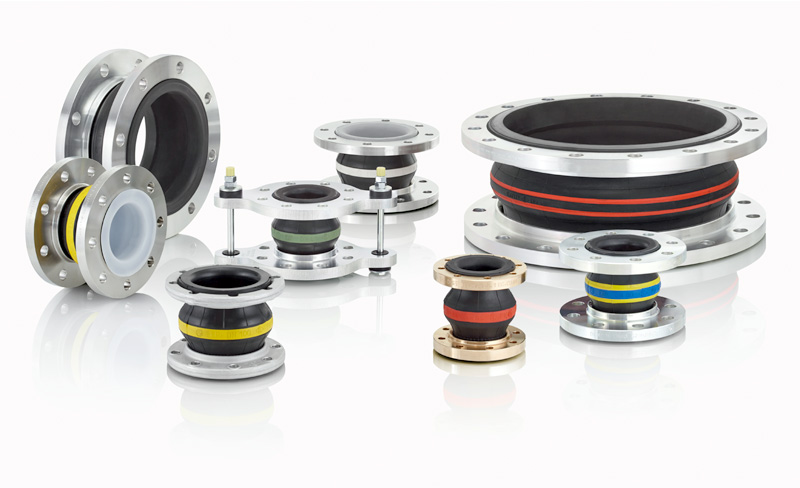

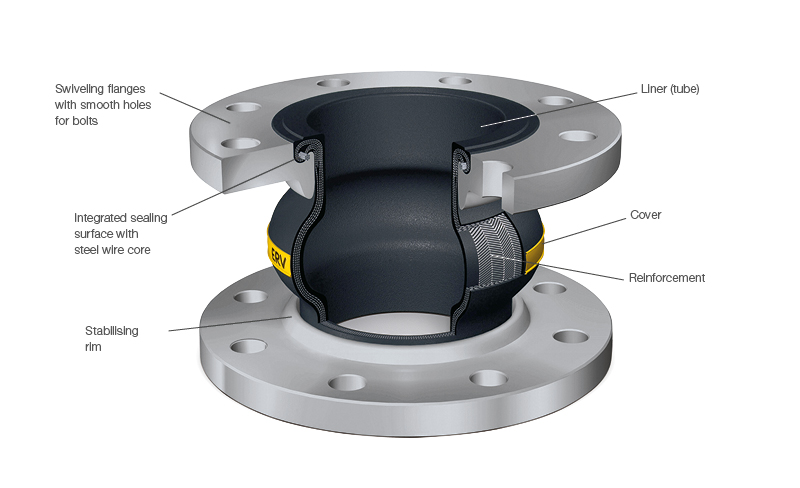

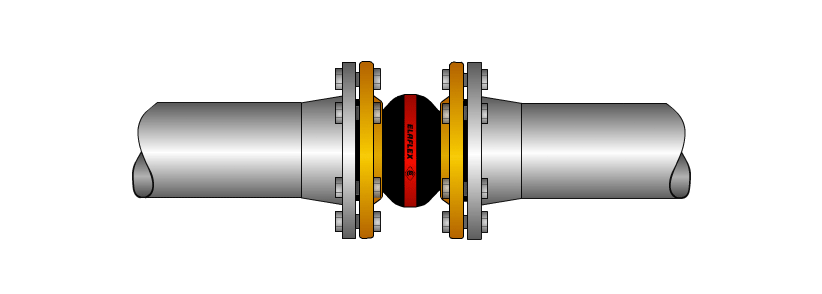

ERV expansion joints from Elaflex are moulded single sphere type rubber bellows with swiveling metal flanges. Their construction and lengths (installation sizes) have since become internationally recognised standard.

ERV

Problem Solvers within Pipe Systems :

  • ERV are distinguished by a large axial, lateral and angular range of allowable movement, low reaction forces and low inherent resistance.
  • ERV are used to absorb tensions caused by temperature changes (thermal expansion), and equalize structural settling such as basement subsiding or ground movements.
  • ERV are suitable as a pipe insert / expansion piece to facilitate inspections
  • ERV are perfect noise dampeners and ideally qualified to reduce vibrations. The major part of the piping‘s structure-borne noise and the low-frequency noise generated by fluids is eliminated.
  • ERV also serve to equalise assembly inaccuracies. If ERV are provided for during the planning phase there will be less problems during installation caused by inaccuracy.

Large inventory: ELAFLEX Hamburg constantly stocks more than 20.000 premium quality bellows - basis for a fast, reliable delivery.

Depending on the operation conditions you choose the right ERV-type (i.e. EPDM, NBR, Hypalon or Neoprene). ELAFLEX offers 13 different types, DN 25 - 1000 mm, in various lengths.

Quality production: only premium quality bellows exclusively made for us by ContiTech, Germany are used. Both ELAFLEX and ContiTech have a reputaion for reliability and longevity.

Please take advantage of the experience of our sales team. Alternatively, for an easy and quick choice: use our ERV Configurator !
