SMX 50-2"

Female hose coupling of steel with Spannfix clamps

SPANNFIX pinned safety clamps of aluminium

SX 50 NR Al

Tecnopal chemicol hose assembly

on hose reel

Storz Safety Coupling SHK

upon uncoupling, the safety dust plug first falls into holding claws, relasing an eventual pressure within the system. Only then the dust cap can be fully taken off. - increased protection for the operating personnel. Easy to use, no additional pressure release necessary, slim design, does not build up, no freezing up in the dome section.

ELAFLEX HIBY Tanktechnik, Production Plettenberg / Germany

Swivel assembling

Hose assemblies and Rubber Expansion Joints for the chemical industry

ERV-GR TA, UTL with DDC, FXD with male thread, Elaflon Plus FEP with foodstuff fitting, Elaflon PTFE with female thrad

Rubber Expansion Joint ERV-OR 80.25

ORANGE BAND expansion joints for Liquid Petroleum Gas (LPG) to EN 589. For tank trucks and refuelling stations. Temperature range (depending on medium) - 20° C up to + 90° C, temporarily up to 100° C. Electrically dissipative.

DAC-V 65, DAC-M 65

Aircraft refueller , Dry Aircraft Coupling to ISO 45 for bottom loading - in action

LG 2" hose assembly for gravity discharge, respectively for vapour balance

ZVF 50 JET overwing refuelling

with HD-C hose assembly

Colour production: manifold

UTS and FWS hose assemblies

V 16-3/4"

Male ferrule hose coupling EN 14424, reusable. Slimline 16 hose, blue.

ELAFLEX Hamburg

Assembling VSRV bolted vacuum support ring

DDC-K 3" SS ADR

Pressure Cap, e.g. für LPG - Special type PN 25, ADR / RID compatible. With pressure indicator and pressure relief valve.

Vehicle refuelling with LPG (L.P. Gas, Autogas)

ZVG 2 ACME nozzle

Production MannTek, Sweden

Fluorflex FXD universal hose assemblies with anti kinking spiral KSS

extremely flexible PTFE hose with maximum bending radius and safety against kinking

ZVA Slimline 2

ZVA Slimline TD

Automatic nozzle with special seals, for solvents / chemicals

Ship loading with chemicals

UTS 150 hose assembly, ARK-S Safety Break Coupling

RS 2 x 2 Ms

Reducer Female/Male

Elaflon Plus FEP hose assemblies, SBC Safety Breakaway Couplings

Slimline 16 green

Quality petrol pump hose for gasoline and diesel fuels. Also suitable for fuels with ethanol content up to E 85 and Biodiesel up to B 30 (BIO Type up to B 100). Meets weights and measures regulations, see overleaf. Cold flexible down to - 30° C / - 22° F (LT-type down to - 40° C / - 40° F). Corresponds to EN 1360.

ELAFLEX Hamburg

Mini Installation instructions, on request

Fuel delivery at the petrol station

LTW 75 fuel delivery hose

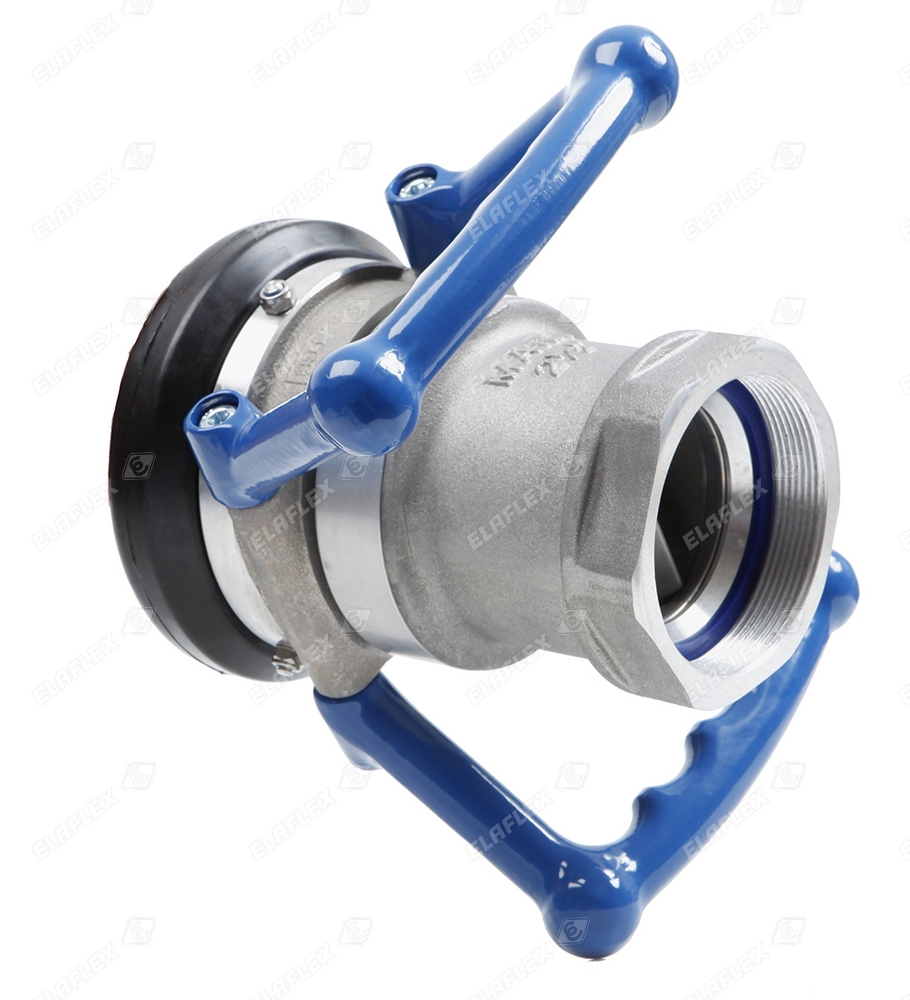

MK 80-90 SS; MK coupling stainless steel with bent lever 90°

TW coupling with bent lever: For any application it should be checked that the lever can be arrested as shown even if there is tight space. Elaflex offers bent levers for all MK couplers.

Slimline dispensing hose SF (sulfur-free)

Fuel producers spend considerable effort in fulfilling the maximum allowed sulfur content. Rubber compounds of this hose type are free of sulphur – ensures that the sulphur content of the fuel is not increased, even if the medium remains for a long time within the hose

Cargo loading of a tanker with petroleum based products; FHD hose assembly with new longitudinal stripe to avoid torsion

Picture courtesy of Macoil International, Gibraltar

Hose Reel Spring Rewind

HD 25 C, ZVA 25 AF red, GKG 25, EKG 1200

ERV-G 80.TW

ERV-G Rubber Expansion Joint with TW flanges DIN 28460 for installation to tankers
