Road tanker for heating oil delivery, HD hose assembly, ZH 50 nozzle, MK 80 Ms coupler with VB 80 Al dust plug

Road tanker for heating oil delivery, HD hose assembly, ZH 50 nozzle, MK 80 Ms coupler with VB 80 Al dust plug

Aircraft refuelling hoses

Aircraft refuelling hoses

TW-E, HD-C Neon, PHD-F, HD-C

Overwing refuelling ZVA 25

Overwing refuelling ZVA 25

ELAFLEX Hamburg

ELAFLEX Hamburg

Assembling Spannloc hose clamps

ZVA Slimline 2 GRVP, Coax hose assembly

ZVA Slimline 2 GRVP, Coax hose assembly

With integrated vapour insert EK 096. For dispensers with single fi lling point or dispensers with integrated 'On / Off ' valve. The vapour return rate is regulated within the dispenser.

Aircraft refuelling Hose Reel

Aircraft refuelling Hose Reel

rewind

Lube oil loading of a ship

Lube oil loading of a ship

TW 75 hose assembly, TW couplings

KWZ 3" Al

KWZ 3" Al

Rail tanker adapter with male thread connection, aluminium

Hot bitumen hose - loading (bunkering) ship

Hot bitumen hose - loading (bunkering) ship

HB 100 hose assembly

Camlock couplings:

Camlock couplings:

stainless steel female and male couplings to EN 14420 - 7

Oasis ball valves for CNG

Oasis ball valves for CNG

Hose assemblies and Rubber Expansion Joints for the chemical industry

Hose assemblies and Rubber Expansion Joints for the chemical industry

ERV-GR TA, UTL with DDC, FXD with male thread, Elaflon Plus FEP with foodstuff fitting, Elaflon PTFE with female thrad

FWS composite hoses / hose assemblies

FWS composite hoses / hose assemblies

Type FWS PP with female threaded fitting, Type FWS PTFE with stainless steel flange

Marine bunkering and cargo hoses

Marine bunkering and cargo hoses

ship to ship bunkering

ERV-G 150 TW, ERV-G 100 TW, ERV-G 80 TW

ERV-G 150 TW, ERV-G 100 TW, ERV-G 80 TW

LMS 50 Blue Band solvent hose with helix

LMS 50 Blue Band solvent hose with helix

Coupling: RMC 50 SS / SS, foodstuff thread, Spannloc clamps of stainless steel

Solvapal 32

Solvapal 32

Solvent hose to EN 12115 for most solvents, paints (also waterbased), water laquer, petroleum products, alcohols, alede hydes, esters and ketones. In short term operation also suitable for aromatic und chlorinated hydrocarbons.

HB hot bitumen hose

HB hot bitumen hose

'Brown Band', for filling of hot bitumen and heavy fuel oil. Temperature range - 25° to max. + 200° C. Meets EN 13482.

HD-C, airport depot

HD-C, airport depot

Underwing couplings with HD-C hoses for bottom loading of aircraft refuellers at airport depot

Elaflon Plus FEP 25

Elaflon Plus FEP 25

Universal hose ELAFLON PLUS FEP with seamless FEP lining, resistant to all commonly used chemicals, see resistance chart. Suitable for both suction and delivery (Type FEP D = delivery only). W.P. up to 16 bar, burst pressure > 64 bar. Temperature range from - 30° C up to + 100° C, briefly up to 130° C. Steaming out for cleaning and sterilisation permissible up to 150° C, max. 30 min (open system). Meets EN 12115.

ELAFLEX Hamburg

ELAFLEX Hamburg

Assembling Coax hoses

DDC-V 50 SS F, DDC-K 50 blue (for AdBlue®)

DDC-V 50 SS F, DDC-K 50 blue (for AdBlue®)

ZVA Slimline 2 GR (vapour recovery nozzle), CSB 21 Coax Safety Break, Coax dispensing hose

ZVA Slimline 2 GR (vapour recovery nozzle), CSB 21 Coax Safety Break, Coax dispensing hose

Construction of ELAFLEX composite hoses type FWS

Construction of ELAFLEX composite hoses type FWS

Sectioned view of a composite hose, denomination of the components (German)

Camlock hose couplings: system comparison

Camlock hose couplings: system comparison

Easyloc from Elaflex with automatically secured levers.

FFC 50.16 St

FFC 50.16 St

Fixed flange hose fitting of steel, with Spannloc clamps

Slimline 21 red

Slimline 21 red

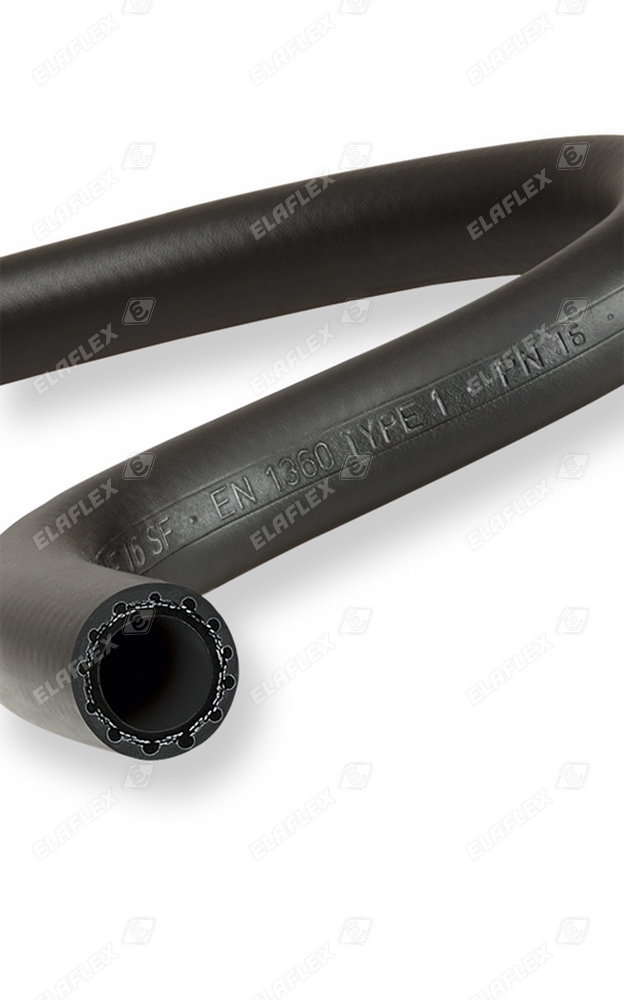

Quality petrol pump hose for gasoline and diesel fuels. Also suitable for fuels with ethanol content up to E 85 and Biodiesel up to B 30 (BIO Type up to B 100). Meets weights and measures regulations, see overleaf. Cold flexible down to - 30° C / - 22° F (LT-type down to - 40° C / - 40° F). Corresponds to EN 1360 and EN 13483.

TSVC 100 hose connectors

TSVC 100 hose connectors

Fittings to conect two hose assemblies - available in many sizes, with Spannloc or Spannfix clamps

VK 50 SS

VK 50 SS

TW male coupling stainless steel

Rubber Expansion Joint ERV-CR 80.16

Rubber Expansion Joint ERV-CR 80.16

CR Expansion Joints for cold and warm water, swimming pool water, sea water, waste water (weakly sour or alkaline) also oil containing, cooling water with protective oils against corrosion, lubricating oil, grease and air, compressed air. Temperature range (depending on medium) - 25° C up to + 90° C, temporarily up to + 100° C. Electrically non-conductive.
