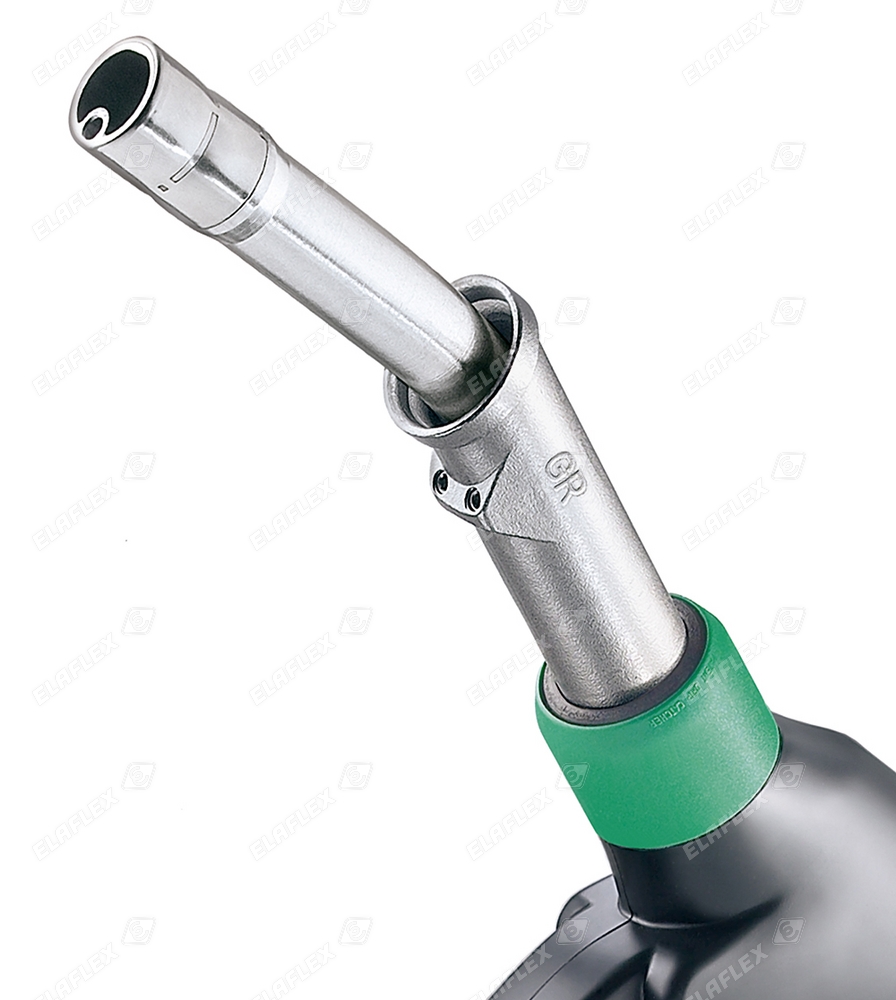

Customer protected special design ZVA Slimline 2 GR nozzle

ZVA Slimline 2 GRVP - spout with vapour suction inlet

Adapters / couplers for vehicles fighting dangerous goods incidents:

Dry Disconnect Stanag 3756 DDC- M 50 / 65 / 80 SS NOT x VK 50 SS/Vi Hose sided MK coupling can be coupled without tools

Bellows ERV-GR (Green Band) without flanges, with VSD vakuum support spiral

VSD: to increase vacuum resistance of a chosen ERV type. Open ring of stainless steel 1.4571

EA 075, EA 318, EA 375

Swivel

ERV-G 100.16

YELLOW BAND Rubber Expansion Joint suitable for petroleum based products with aromatic content up to 50%, fuels (ethanol content up to 85 %), aviation fuels, town gas and natural gas except liquefied petroleum gas. Temperature range (depending on medium) - 20° C up to + 90° C, temporarily up to + 100° C. Electrically dissipative.

Ship loading with chemicals

UTS 150 hose assembly, ARK-S Safety Break Coupling

ZVF 50 JET overwing refuelling

LeverAssist hold-open aid for comfortable refuelling

From Terminal To Nozzle

Elaflex refuelling equipment

H2 Hydrogen group picture

ERV-H2+, H2 hydrogen hose assembly, Oasis Ball Valves, Check Valves

SL 16 for AdBlue® (blue) hose assembly with anti-kinking sleeve, colour sleeve

Elaflon PTFE

Universal hose with electrically conductive, seamless lining of PTFE (Polytetrafluorethylene). Suitable for all commonly used chemicals. Suitable for both suction and delivery (Type PTFE D = delivery). Working pressure up to 16 bar, burst pressure > 64 bar. Temperature range from - 30° up to + 150° Celsius (depending on medium). Steaming out for cleaning and sterilisation permissible up to 150° C, max. 30 min. Meets EN 12115. FDA und USP Class VI conform according EC regulations 1935/2004 and 10/2011.

ELAFLEX HIBY Tanktechnik, Production Plettenberg / Germany

Plettenberg factory 1

Elaflex hoses

PTFE, FEP, HD, UTS

ERV-R

"Red Band" Rubber Expansion Joints with limiters / pump station

GasGuard LPG nozzle GG1E

eoconomic type for industrial refueling / attended refueling. Release volume on valve closure: 1,9 cm³.

MK 80-90 SS; MK coupling stainless steel with bent lever 90°

TW coupling with bent lever: For any application it should be checked that the lever can be arrested as shown even if there is tight space. Elaflex offers bent levers for all MK couplers.

Cabinet of road tanker:

hose tubes, TW hoses, TW couplings

ELAFLEX Hamburg

Assembling dispensing hose fitting

ELAFLEX Hamburg

Hose stock

LPG terminal: loading with DGC Dry Gas Couplings

DDC Dry Disconnect Couplings for chemicals

Rail tanker loading/unloading

Construction site / on site refuelling:

ZVA 500 manual bulk nozzle, HD hose assembly, road tanker

LPG 16 orange

Hose assembly for L.P. Gas, with anti-kinking sleeve and Colour Sleeve

VR Hose Reel Spring Rewind, ZVA Slimline 2 GR blue

for active Vapour Recovery (VR) for gasoline fuels

System comparison Camlock Cam Locking Couplings

Industry standard vs. ELAFLEX EASYLOC

IBC unloading

Coupling of Chemopal chemical hose assembly with AMKC 50 SS (Camlock female with Spannloc attachment) to AMKI male coupling. Use of IBC-adapter RS 60 x 2 SS.

ELAFIX 40

Magnet adapter for installation in filler necks from DN 40. This adapter allows the refilling of urea solution with ZVA HV for AdBlue^®, without the risk of misfillings. Meets ISO 22241-4.

HD-C, ZVF 50, Refueller

Aircraft refueller, overwing refuelling JET

Production MannTek, Sweden
