Media Library / Images

ZVA 25, Slimline hose assembly

Truck refuelling

Rubber Expansion Joint ERV-R 80.16

RED BAND expansion joints for water, drinking water (approvalDVGW W 270 as well as ACS, conform to FDA), cold and warm waste water, seawater, cooling water, also with chemical additives for water treatment, low concentrated acids and alkalis, salt solutions, technical alcohols, esters and ketones. Can be used in oily athmospheric environments, e.g. engine rooms. Temperature (depending on medium) - 40° C up to + 100° C, temporarily up to + 120° C. Electrically dissipative.

EN 12115 hoses: colour marking

FSH flame protection cover for ERV rubber expansion joints

Use e.g. in ship engine rooms

ZVA Slimline 2 GR nozzle

with Coax hose assembly (one side open end, inner vapour hose visible)

Lube oil loading of a ship

TW 75 hose assembly, TW couplings

PAL hoses for the chemical industry

Polypal Clean hose assembly

Pharmaceutical production

SSB 25 Safety Break: Abriss

IBC loading

Elaflon Plus FEP hose assembly

Vehicle refuelling with LPG (L.P. Gas, Autogas)

GasGuard GG30 BAYO nozzle with Bayonet connector and optional splashguard, LPG 16 hose assembly, ARK 19 Safety Break

ZVA Slimline 2, dispenser

MannTek Dry Disconnect Couplings:

DDC-V 50-2", DDC-V 50 F, DDC-M 50-2", DDC-M 80-3"

VR Hose Reel Spring Rewind, ZVA Slimline 2 GR blue

for active Vapour Recovery (VR)

Camlock couplings:

stainless steel female and male couplings to EN 14420 - 7

Boat refuelling, ZVA 25

Ship bunkering

FHD hose assembly, flange connection

ZVG 2 EURO nozzle for L.P. Gas / Autogas, LPG 16 hose assembly

Offshore FSRU (Floating Regasification Unit), Unloading Gasoil Sludge

TW hose assemblies, reels

ELAFLEX HIBY Tanktechnik, Production Plettenberg / Germany

Assembling hall, meterial logistics

ZVA Slimline 2 GR, CSB 21, SL 21 Coax

petrol station Dubai - Vapour Recovery

Elaflon PTFE 50

Universal hose with electrically conductive, seamless lining of PTFE (Polytetrafluorethylene). Suitable for all commonly used chemicals. Suitable for both suction and delivery (Type PTFE D = delivery). Working pressure up to 16 bar, burst pressure > 64 bar. Temperature range from - 30° up to + 150° Celsius (depending on medium). Steaming out for cleaning and sterilisation permissible up to 150° C, max. 30 min. Meets EN 12115. FDA und USP Class VI conform according EC regulations 1935/2004 and 10/2011.

Guards for ZVA nozzles

suitable for all dispensers, world wide

Unloading petroleum products at the service station (road tanker to UST)

LTW hose assembly, MK 80-32° Ms couplers with bent lever. The lever shall always be fully closed for safety reasons. For applications with limited room.

ZVA Slimline 2 nozzle with hose assembly

Slimline 19 black

Quality petrol pump hose for gasoline and diesel fuels. Also suitable for fuels with ethanol content up to E 85 and Biodiesel up to B 30 (BIO Type up to B 100). Meets weights and measures regulations, see overleaf. Cold flexible down to - 30° C / - 22° F (LT-type down to - 40° C / - 40° F). Corresponds to EN 1360.

VX 38-11/2" SS

Spannfix male hose coupling, stainless steel

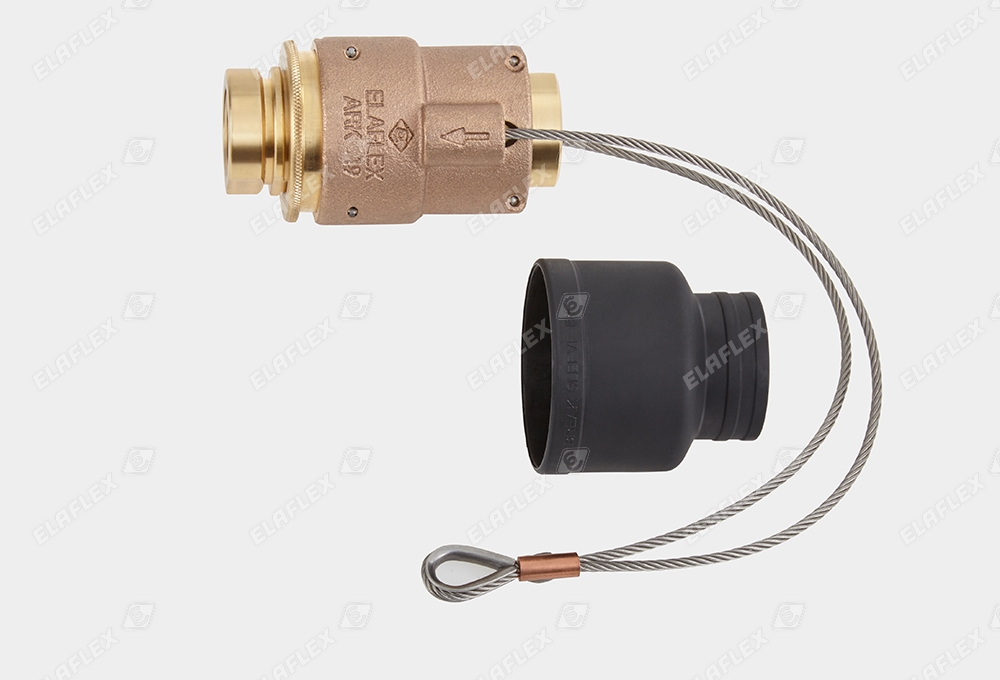

ARK 19 Safety Break including BS 19 Break Sleeve

Safety Break (Hose Break) for installation to LPG Autogas dispensers. Reassembly on site without tools

ERV TAS:

ERV with PTFE lining and PTFE vacuum support ring. Properties like type TA, but also suitable for vacuum service, up to 70° C.
