Offshore FSRU (Floating Regasification Unit), connector for gasoil sludge / seawater
DDC-V 150 F
ZAF Coax adapter (splitter valve) at petrol station dispenser
Hose Reel with HD 38, ZVA 25, Bonding Reel red
Mobile Cabinet, airfield refuelling
Production MannTek, Sweden
SBS 250 - marine cargo hoses with built-in nipples
EN 1765, category S 15
VB 50 SSE
TW dust plug of stainless steel, surface in contact with the medium additionally coated with Teflon® PFA. This type is used if stainless steel does not have a sufficient chemical resistance (i.e. for hydrochloric acid and iron-III-chloride) and polypropylene is not possible because of insufficient stability. Available in all standard sizes.
MannTek DDC-M150, DDC-V150, DDC-V150 F
ZVA Slimline 2 GR, SG-COAX, ZVA SLimline 2, SG 1" Al
Multi Product Dispenser with / without vapour recovery; nozzles with Sight Glass
Sideway storage of hose assemblies, tank truck for petrol station delivery
LG 3" hose assembly for gravity discharge, LG 2" hose assembly for vapour balance
ELAFLEX HIBY Tanktechnik, Production Plettenberg / Germany
Plettenberg factory 2
HD-C, underwing nozzle
Aircraft refueller, large reel with aircraft refuelling hose and underwing nozzle
Rail tanker unloading of petroleum based products
LTW 75 (hose), MKX 75 ('TW' female coupler with Spannfix clamps), Adapter KWZ x VK 80 (51/2" x 'TW'-male coupler)
Adapter: VK 100 x MK 80-32°
The lever is bent to enable lever arrest (safe position when coupled)
ZV 500 DDC, ZVA 32 DDC, hose assembly with DDC-M coupling
Refuelling of construction site machines from the road tanker: only one hose reel, choose between two nozzles (ZV 500 for bulk, ZVA 32 automatic nozzle up to 200 l/min)
ELAFLEX Hamburg
Manufacturing bronze corrugated pipes
ZVA Slimline 2 LA nozzle with LeverAssist hold-open aid
and Sight Glass SG 1 Al / Slimline dispensing hose
ERV VSRV:
ERV with bolted vacuum support ring. For maximal vacuum resistance of the selected ERV. Bolted ring in stainless steel AISI 316 Ti.
Oasis NC 203 P30_P36 Nozzle Couplers
M 16-1" NR cr
Female ferrule hose coupling EN 14424, factory assembled, non-reattacheable. Slimline 16 hose, red.
RS 1 x 11/4 SS
Reducer Female/Male
ERV with FSH:
Flame protection cover (open)
ZVA Slimline 2 GR LA (with LeverAssist)
LeverAssist hold-open aid for comfortable refuelling, for countries in which latching is not allowed
HD 50 reel hose for petroleum based products, VC 50-2" Spannloc clamped male coupling
Elapharm EPH 25 with EN 1092-1flange fitting, free of dead spaces
KW bronze corrugated pipe with cathodic protection
Cathodic protection flexible pipe connector (bronze corrugated pipe) for electrically insulating, cathodically protected installations. Installed in manhole of a petrol station underground storage tank (UST). Suction pipes towards the dispenser pumps - and directly underneath the dispensers
UTS 50 hose assembly
with MannTek DDC Dry Disconnect Coupling; use eg. as road tanker hose for filling AdBlue petrol station tanks
RS 2 x 3 SS
Reducer Female/Male
SBC-C 150.16
MannTek Safety Breakaway Coupling with cable release, PN 16 flange connection
ERV-CR
"CR" Rubber Expansion Joints - ballast water treatment skid
ELAFLEX Hamburg

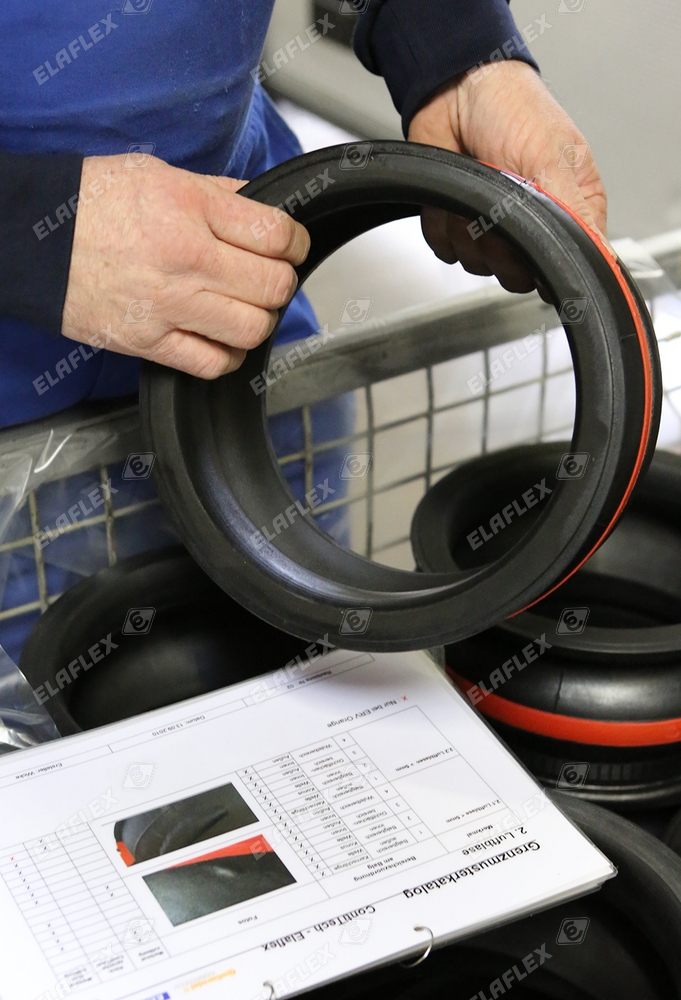

Visual quality checks
